3" 90 DEG. BUTT WELD ELBOW SR SCH .160 ASTM A-234 GR. WP 11
1. Order information
| DESCRIPTION | 3" 90 DEG. BUTT WELD ELBOW SR SCH .160 ASTM A-234 GR. WP 11 |
| QTY(Pcs) | 2 |
| Export Date | 2019/11/10 |
| Export Country | Indonesia |
2. Standard Specification For Alloy Steel ASTM A234 WP11 Pipe Fittings
Specifications : ASTM A234 / ASME SA234
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
3. ASTM A234 WP11 Alloy Steel Pipe Fittings
Seamless/ Welded 100% Radiography Tested
| Products | Size |
| ASTM A234 WP11 Alloy Steel Elbow – Long Radius | ASTM A234 WP11 Alloy Steel Stub Ends | Sizes 1/2″ – 48″ |
| ASTM A234 WP11 Alloy Steel Elbow – Short Radius | ASTM A234 WP11 Alloy Steel Cross |
| ASTM A234 WP11 Alloy Steel Reducing Elbow | ASTM A234 WP11 Alloy Steel Reducing Cross |
| ASTM A234 WP11 Alloy Steel 45° Elbow | ASTM A234 WP11 Alloy Steel Tees |
| ASTM A234 WP11 Alloy Steel Fabricated Tee | ASTM A234 WP11 Alloy Steel End Cap |
| ASTM A234 WP11 Alloy Steel Reducer | ASTM A234 WP11 Alloy Steel Seamless Fittings |
| ASTM A234 WP11 Alloy Steel Concentric Reducer | ASTM A234 WP11 Alloy Steel Pipe Nipple |
| ASTM A234 WP11 Alloy Steel Eccentric Reducer | ASTM A234 WP11 Alloy Steel 5D Elbow |
| ASTM A234 WP11 Alloy Steel 3D Elbow | ASTM A234 WP11 Alloy Steel Welded Pipe Fittings |
4. Chemical Composition of Grade WP11 Alloy Steel Butt weld Fittings
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP11 | 0.05-0.2 | 0.3-0.8 | 0.5-1 | ≤0.030 | ≤0.030 | 1-1.5 | 0.44-0.65 |
5. Mechanical Properties of ASTM A234 Alloy Steel WP11 Butt weld Pipe Fittings
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP11 | 415 - 585 | ≥205 | ≥20 |
6. ASTM A234 WP11 Alloy Steel Buttweld Fittings Available Types
| Alloy Steel WP11 Pipe Fittings | Alloy Steel WP11 Buttweld Pipe Fittings |
| Alloy Steel WP11 Seamless Pipe Fittings | Alloy Steel WP11 Welded Pipe Fittings |
| Alloy Steel A234 WP11 Pipe Elbow | Alloy Steel 1 1/4 Cr-1/2Mo Buttweld Tee |
| Chrome Moly WP11 Buttweld Reducer Suppliers | ANSI WP11 Alloy Steel Pipe Fittings |
| Chrome Moly A234 WP11 Stubends Dealer | ASTM A234 WP11 Pipe Fittings Exporter |
| Alloy Steel WP11 Butt weld Fittings Stockholder | Steel WP11 Pipe End Cap Distributors |
| Alloy Steel WP11 45deg.Elbow | A234 WP11 90deg. LR Elbow Manufacturer |
| Alloy Steel Grade WP11 Pipe Tee | Alloy Steel ASTM A234 WP11 Cross |
| Alloy Steel WP11 Buttweld Reducing Nipple | Alloy WP11 Short Radius Elbow |
| ANSI B16.9 ASTM A234 WP11 Buttweld Fitting | A234 WP11 End Pipe Cap Stockist |
| ASTM A234 WP11 Welded Pipe Fittings | Alloy Steel ASME SA234 WP11 Pipe Fittings |
|
|

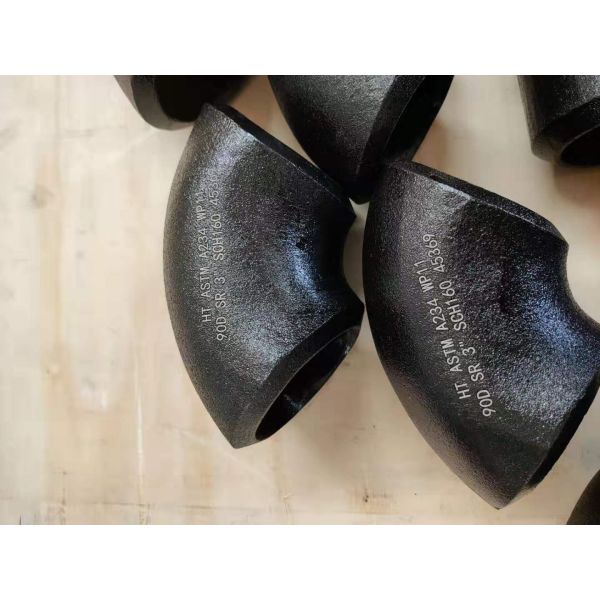

3" 90 DEG. BUTT WELD ELBOW SR SCH .160 ASTM A-234 GR. WP 11 Images
|
